Sprinkler Heads

Home → Product Information → Sprinkler Head → Flush Product Line → Seismic Sprinkler Head

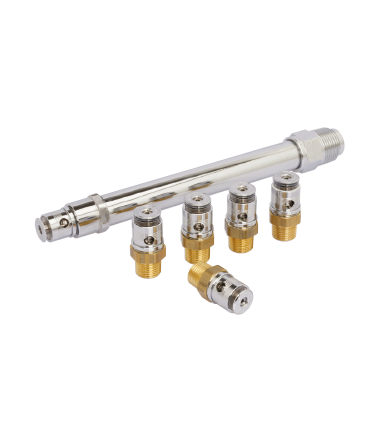

제품사진

105℃ Standard response type

Product overview
Sprinkler Head is an instrument designed for automated fire extinguisher before flush-over in case of fire and thus requires top reliability to minimize damage in life, property at extreme condition.To meet these purpose and lead groundbreaking technical innnvation in firefighting industry, the Sprinkler Head which ASA Kwang Woon Co., Ltd. developed has some characteristics as below. *Seismic Sprinkler Head
    Notice: Undefined offset: 20 in /home/kwangun/public_html/html/_module/product/view.html on line 29
Product Characteristics

Cold Solid problem

settlement before flush over in case of fire through real fire test

assembly drawing

Shock withstand structure of Iron ball supported type

assembly drawing

Low assembly load

Because O-ring sealing method minimizes the assembly load, the stress generated inside the head is small and it is very safe design.

Product Specififcation

Our Flush-type Sprinkler Head is an innovative and totally new structure with high-quality special coating and O-ring on the nozzle part and 8 bearing balls on disassembly part. Leakage or watering is an unthinkable sprinkler head unless the sprinkler head is operated by temperature and the breakdown section is completely broken or the head itself is not completely broken. It is a literally shockproof type sprinkler head which can not be seen in other products due to its stable structure developed by our company.

* Seismic Sprinkler Head

  • flush head img
  • flush head img
  • flush head img
  • flush head ring img
Item No. Display
Temperature		 Heat Sensitivity Water Quantity(ℓ/min) Effective Watering Radius(m) Mounting Direction Protection Cap Color
AE72-Q80C 72℃ Early response type 80 2.6 Downward Yellow-green
AE105-Q80C 105℃ Early response type 80 2.6 Downward Transparent
AE72-Q50C 72℃ Early response type, Residential type 50 2.6 Downward Red
AE105-Q50C 105℃ Early response type, Residential type 50 2.6 Downward Pink
AE72-M80C 72℃ Standard response type 80 2.3 Downward Green
AE105-M80C 105℃ Standard response type 80 2.3 Downward Blue

* Seismic Sprinkler Head
