72℃ Early response type, Residential type

Product overview

Sprinkler Head is an instrument designed for automated fire extinguisher before flush-over in case of fire and thus requires top reliability to minimize damage in life, property at extreme condition.To meet these purpose and lead groundbreaking technical innnvation in firefighting industry, the Sprinkler Head which ASA Kwang Woon Co., Ltd. developed has some characteristics as below. * O-ring Sealing Sprinkler

Notice: Undefined offset: 20 in /home/kwangun/public_html/html/_module/product/view.html on line 29

Product Characteristics

Cold Solid problem

settlement before flush over in case of fire through real fire test

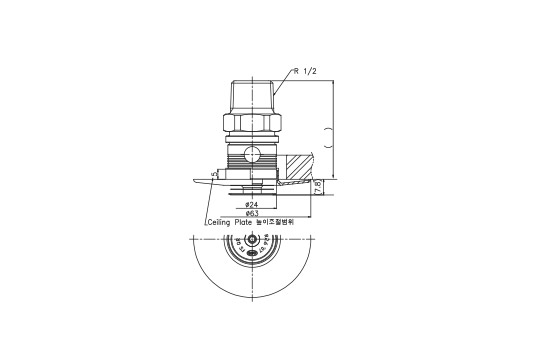

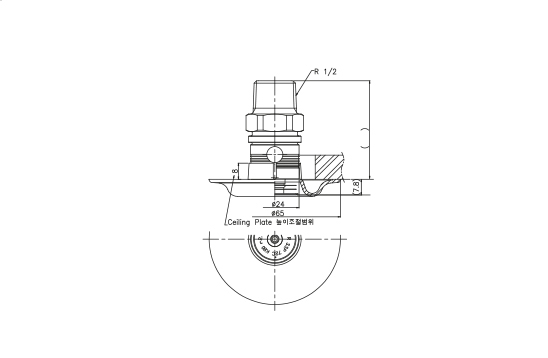

assembly drawing — Shock withstand structure of Iron ball supported type

Product Specififcation

Our Flush-type Sprinkler Head is an innovative and totally new structure with high-quality special coating and O-ring on the nozzle part and 8 bearing balls on disassembly part. Leakage or watering is an unthinkable sprinkler head unless the sprinkler head is operated by temperature and the breakdown section is completely broken or the head itself is not completely broken. It is a literally shockproof type sprinkler head which can not be seen in other products due to its stable structure developed by our company.

* O-ring Sealing Sprinkler

Item No.	Display Temperature	Heat Sensitivity	Water Quantity(ℓ/min)	Effective Watering Radius(m)	Mounting Direction	Protection Cap Color
AE72-Q80C	72℃	Early response type	80	2.6	Downward	Yellow-green
AE105-Q80C	105℃	Early response type	80	2.6	Downward	Transparent
AE72-Q50C	72℃	Early response type, Residential type	50	2.6	Downward	Red
AE105-Q50C	105℃	Early response type, Residential type	50	2.6	Downward	Pink
AE72-M80C	72℃	Standard response type	80	2.3	Downward	Green
AE105-M80C	105℃	Standard response type	80	2.3	Downward	Blue
