AG93-M80-SSH
Product overview

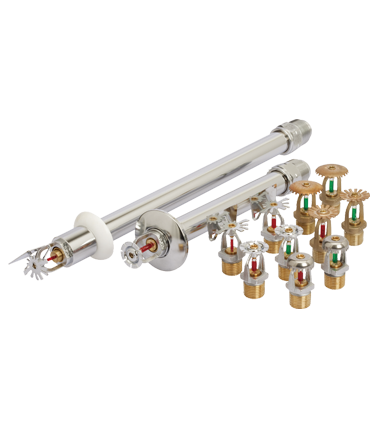

Frame Type Sprinkler Head with glass bulb assembled. The thermal part of the glass bulb is filled with
thermal expansion liquid in a special glass, and it is the best head for an exposed piping type without
a ceiling like parking lot. Our Glass Bulb Type Sprinkler Head uses safety bulb made by Job, Germany,
the world's largest glass bulb maker that does not cause malfunctions in a compact and lightweight
structure, and ensures safety and sufficient reliability.
* Lightweight Structure Sprinkler Head
-
Notice: Undefined offset: 20 in /home/kwangun/public_html/html/_module/product/view.html on line 29
Product Specifiaction
- Connection thread : General standard PT 1/2"(15A)
- Operating pressure range : 0.15 ~ 1.2 MPa
- Hydrostatic test pressure : 2.5 MPa / 5 min
- Thermostat characteristics : Glass bulb
- O perating temperature classification : 68 ℃ - Red / 93 ℃ - Green
- Distribution of water direction : : Upward (SSU) / Downward (SSP) / Sidewall, Horizontal (SSH)
- Sensitivity characteristics Classification : Standard response type (SR) / Early response type (QR)
- Lightweight Structure Sprinkler Head
Production list
Item No. | Display Temperature |
Sensitivity Characteristic | Effective Watering Radius | Effective Watering Radius | Connection Thread | Watering Quantity |
---|---|---|---|---|---|---|
AG68-M80-SSU | 68℃ | Standard response type | Upward | r 2.3 | PT 1/2” | 80LPM |
AG68-M80-SSP | 68℃ | Standard response type | Downward | r 2.3 | ||
AG93-M80-SSU | 93℃ | Standard response type | Upward | r 2.3 | ||
AG93-M80-SSP | 93℃ | Standard response type | Downward | r 2.3 | ||
AG68-Q80-SSU | 68℃ | Early response type | Upward | r 2.3 | ||
AG68-Q80-SSP | 68℃ | Early response type | Downward | r 2.3 | ||
AG68-M80-SSH | 68℃ | Standard response type | Standard Sidewall type spraying | |||
AG93-M80-SSH | 93℃ | Standard response type | ||||
AG68-Q80-SSH | 68℃ | Early response type | ||||
AG93-Q80-SSH | 93℃ | Early response type | ||||
AGOP-80-SSU | Open type | - | Upward | r 2.3 | ||
AGOP-80-SSP | Open type | - | Downward | r 2.3 | ||
AUG68, 93-M80-SSU | 68, 93℃ | Standard response type | Upward | UL 199 | NPT1/2 | K5.6 |
AUG68, 93-M80-SSP | 68, 93℃ | Standard response type | Downward |
