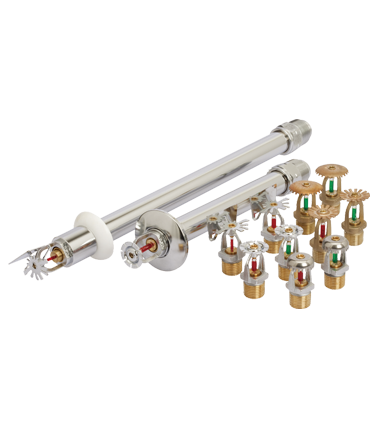

Product overview : Fire sprinkler bulb

Glass bulb sprinkler with Frame Type Head assembled. The thermal part of the glass bulb is filled with thermal expansion liquid in a special glass, and it is the best head for an exposed piping type without a ceiling like parking lot. The fire sprinkler contractor, Kwang Woon's Glass bulb type sprinkler head uses safety bulb made by Job, Germany, the world's largest glass bulb maker that does not cause malfunctions in a compact and lightweight structure, and ensures safety and sufficient reliability. * Residential fire sprinkler head * Fire sprinkler bulb * Glass bulb sprinkler * Bulb type sprinkler ※For inquiries regarding sprinkler head replacement or to request a detailed quote, please do not hesitate to contact us. Our team is ready to provide safe and efficient solutions tailored to your needs.

Notice: Undefined offset: 20 in /home/kwangun/public_html/html/_module/product/view.html on line 29

Product Specifiaction : Fire sprinkler bulb

Connection thread : General standard PT 1/2"(15A)
Operating pressure range : 0.15 ~ 1.2 MPa
Hydrostatic test pressure : 2.5 MPa / 5 min
Thermostat characteristics : Glass bulb
O perating temperature classification : 68 ℃ - Red / 93 ℃ - Green
Distribution of water direction : : Upward (SSU sprinkler head) / Downward (SSP sprinkler head) / Horizontal (SSH), Dry sidewall sprinkler
Sensitivity characteristics Classification : Standard response type (SR) / Early response type (QR)

Production list : Fire sprinkler bulb

Item No.	Display Temperature	Sensitivity Characteristic	Effective Watering Radius	Effective Watering Radius	Connection Thread	Watering Quantity
AG68-M80-SSU	68℃	Standard response type	Upward SSU sprinkler head	r 2.3	PT 1/2”	80LPM
AG68-M80-SSP	68℃	Standard response type	Downward SSP sprinkler head	r 2.3
AG93-M80-SSU	93℃	Standard response type	Upward SSU sprinkler head	r 2.3
AG93-M80-SSP	93℃	Standard response type	Downward SSP sprinkler head	r 2.3
AG68-Q80-SSU	68℃	Early response type	Upward SSU sprinkler head	r 2.3
AG68-Q80-SSP	68℃	Early response type	Downward SSP sprinkler head	r 2.3
AG68-M80-SSH	68℃	Standard response type	Standard Sidewall type spraying
AG93-M80-SSH	93℃	Standard response type
AG68-Q80-SSH	68℃	Early response type
AG93-Q80-SSH	93℃	Early response type
AGOP-80-SSU	Open type	-	Upward SSU sprinkler head	r 2.3
AGOP-80-SSP	Open type	-	Downward SSP sprinkler head	r 2.3
AUG68, 93-M80-SSU	68, 93℃	Standard response type	Upward SSU sprinkler head	UL 199	NPT1/2	K5.6
AUG68, 93-M80-SSP	68, 93℃	Standard response type	Downward SSP sprinkler head	UL 199	NPT1/2	K5.6
